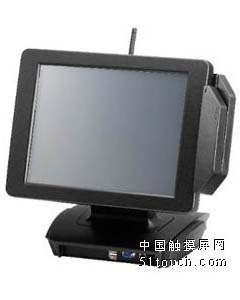

Model | RT-560 | RT-565 |
Platform | Pentium 3 | |
Processor | Intel Ultra Low Voltage Celeron 650MHz (Embedded) | |
Memory | 256MB standard, maximum 512MB (1 x 144-pin SO-DIMM)) | |
Touch LCD Display | ||
Size / Resolution | 12.1" TFT LCD / 800 x 600 | 15" TFT LCD / 1024 x 768 |
Brightness | 200 cd/㎡ | 250 ~ 350 cd/㎡ |
Touch Screen | ELO 5-wire Resistive / Fujitsu 4-wire Resistive | |
I/O Connectivity | ||
Serial Port | ● 3 x External: COM1, COM2 (D-Sub), COM4 (RJ45) for Customer Pole Display | |
● 1 x Internal: COM3 for Primary Touchscreen | ||
Parallel Port | N/A | |
USB port (standard) | 4 x USB 2.0 (2 x external, 2 x internal for Wifi and MCR), 1 x USB 1.1 (external) | |
Cash Drawer Port | 1 x 12V RJ11 (single/dual) | |
Mouse Port | N/A | |
Keyboard Port | 1 x PS/2 keyboard | |
LAN Port | 1 x RJ45 10/100 Base-T | |
VGA Port | 1 x VGA | |
Audio Port | 1 x Line-out, 1 x Mic-in | |
IDE Hard Disk Drive | Built-in 2.5" 40GB (standard) | |
Compact Flash | CF slot | |
Power Supply | 65W External Power Adapter | |
Construction | Aluminum Die-casting Housing | |
Housing Color | Black/Silver | |
O/S Supported | Win2000, XP (Pro, Embedded), WEPOS | |
Dimensions ( W x H x D) | 320 x 320 x 235 mm | 365 x 360 x 235 mm |
Weight | 6 Kgs | 7.5 Kgs |
EMI/Safety | CE, FCC, UL, RoHS | |
Operating Temperature | 0℃ ~ 35℃ | |
Optional Peripherals | ||
Magnetic Stripe Card Reader | Integrated MCR Single/Dual/Triple Track | |
MCR 2-in-one, MCR 3-in-one | Integrated MCR+i-Button / MCR+RFID / MCR+Fingerprint / MCR+Smartcard+i-Button | |
Customer Pole Display | Integrated VFD / LCD Customer Pole Display | |
Wireless LAN | Integrated 802.11b/g Wireless LAN Module (USB interface) |
