Model | RP-2008 | RP-2014 |
Platform | Pentium 4 | |
Processor | Intel Ultra Low Voltage Celeron M 1GHz (Embedded) | |
Memory | 256MB standard, maximum 1GB (1 x 200-pin DDR) | |
Touch LCD Display | ||
Size / Resolution | 8.4" TFT LCD / 800 x 600 | 14" TFT LCD / 1024 x 768 |
Brightness | 200 cd/㎡ | 180 cd/㎡ |
Touch Screen | ELO 5-wire Resistive/Fujitsu 4-wire Resistive | |
I/O Connectivity | ||
Serial Port | ● 5 x External: COM1, COM2, COM5, COM6 (D-Sub), COM4 (RJ45) for VFD | |
● 1 x Internal: COM3 for Primary Touchscreen | ||
Parallel Port | 1 x Parallel | |
Standard USB Port | 6 x USB 2.0 (2 x internal, 4 x external) | |
Mouse Port | N/A | |
Keyboard Port | 1 x PS/2 keyboard | |
LAN Port | 1 x RJ45 10/100 Base-T | |
VGA Port | 1 x VGA | |
IDE Hard Disk Drive | Built-in 3.5" 40GB standard | |
Compact Flash | CF slot available | |
Power Supply | 100W Internal Power Adapter | |
Construction | Plexi-Glass Acrylic Housing (Display Front Bezel), Aluminum Die-casting Housing (Base) | |

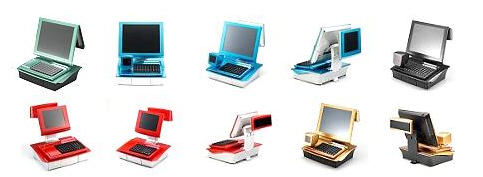

Housing Color | Red/Silver, Blue/Silver, Silver/Silver, Black/Black, Gold/Black | |
O/S Supported | Win2000, XP (Pro, Embedded), WEPOS | |
Dimensions ( W x H x D) | 363 x 393 x 285 mm | |
Weight | 11 kgs | |
EMI/Safety | CE, FCC, UL, RoHS | |
Operating Temperature | 0℃ ~ 35℃ | |
Optional Peripherals | ||
60-Key Programmable Keyboard w/MCR | Integrated 60-Key Programmable Keyboard w/Dual Track MCR | |
Secondary Touch LCD Display | 8.4" TFT LCD (Resistive Touch/Non-Touch | |
Customer Pole Display | Integrated VFD / LCD Customer Pole Display | |
Wireless LAN | Integrated 802.11b/g Wireless LAN Module (USB interface) |
