台北禾瑞亚(EETI)触控面板控制器，是国内最高端，运用最广泛，亦是稳定性最高的触控面板控制器。该系列控制器包括：四线USB&RS232、五线USB&RS232.

    控制器的详细参数:
    触摸屏分辨率:2048x2048
    4点定位 / 25点定位
    支援鼠标右键
    支援画线测试
    多语系的操作窗口
    支援多个监视器
    具备视觉旋转度
    触摸屏通讯接口 :  RS232 或 USB 或 PS2
    计算机通讯接口 :  Pin Header
    驱动程序包括: （ Windows Vista,Windows 98, 2000, NT4, Me, XP, XP Tablet Edition,CE 2.12, CE 3.0, CE.net, Linux, DOS & iMac）
    电气参数:
    电源要求 : +5VDC ( Maximum 100mA, typical 70mA, 50mV peak to peak maximum ripple)
    工作温度 : 0 to 50℃
    贮存温度 : -40 to 80℃
    湿度 : 95% at 60℃
    通讯协定 :RS232 Model: 9600 bauds, None parity, 8 data bits, 1 stop bit
    USB Model: USB 1.1 Low speed
    PS/2 Model: PS/2 mouse
    采样速度:RS232 Model: Max. 160 points/sec
    USB Model: Max. 160 points/sec
    PS/2 Model: Max. 140 points/sec
    最大按压延迟时间: Max. 35 ms
    出线顺序: X+, Y+, X-, Y-
    电阻范围: 300 ~ 900 ohm ( pin to pin on the same layer )

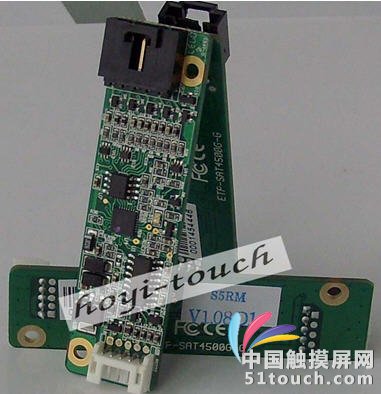

    This touch panel controller provides the optimistic performance of your analog resistive touch panels for 4-wire models. It communicates with PC system directly though USB connector.

    You can see how superior the design is in sensitivity, accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operations systems, including Microsoft Windows Vista, Windows XP,2000,95/98，Windows Me, NT4.0,CE2.12 & 3.0/ NET ,DOS

    •Circuit Board Dimension:20mm x 68mm (0.79inches x 2.68inches)----(4-Wire)
    •Power Requirements：D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
    •Operating Temperature：0 to 50 ℃
    •Storage Temperature：-40 to 80 ℃
    •Relative Humidity：95% at 60 ℃
    •Interface：USB 1.1 Low Speed
    •Report rate：USB Model: Max. 160 points/sec
    •Response time：Max. 35 ms
    •Attached Cable：6' shielded cable with USB-A connector for
    •Regulatory Approvals:FCC-B , CE,Unaffected by EMI from other nearly CRTs
and other display devices
    •EMI:Unaffected by environmental EMI
    Panel resistance:4 wire resistive model: 300 ~ 900 ohm

    了解更多该系列控制器参数及驱动程序之详情,敬请登陆洪毅触摸官方网站www.hongyi-touch.com 或台北禾瑞亚官方网站http://home.eeti.com.tw/。
