Type 型号: |
WZLR (075/100/125/188) |
WZLR (075/100/125/188) |
Characteristics 特点: |
Low Reflection 低反射 |
Low Reflection, Hard Coated 低反射,抗刮花,耐指纹 |
Structure 构造: |
PE Protective Film PE保护膜 | PE Protective Film PE保护膜 |
Primer Treated Layer 印刷处理层 | Primer Treated Layer 印刷处理层 | |
Base Film 75μm 基膜75-188μm | Base Film 75μm 基膜75-188μm | |
LR Treated Layer 低反射处理层 | LR Treated Layer 低反射处理层 | |
Hard Coat Layer 硬化处理层 |

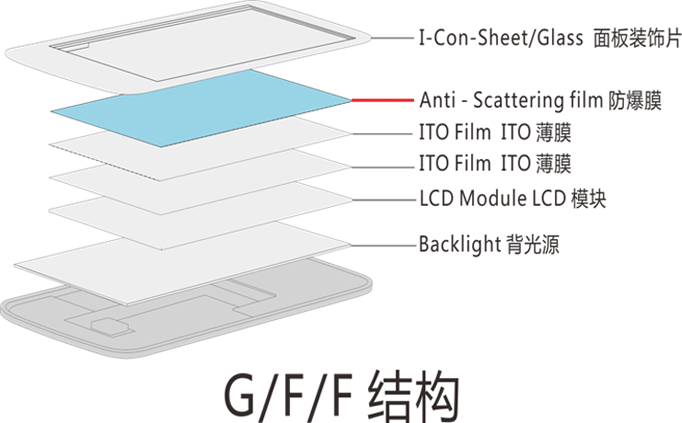

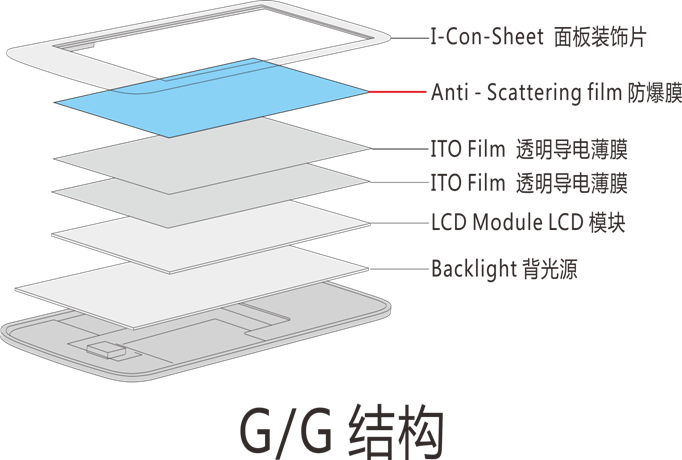

用途:
物理试验数据*:
Subject 特性 |
Item 项目 |
U/M 单位 |
Test Method 方法 |
WZLR | WZLRHC |
Thickness line up |
~ | (μm) | JIS C-2318 | 75,100,125,188 | 75,100,125,188 |
Absolute Reflection/570mm 绝对反射率/570mm |
~ | (%) | 5º | 1.3 | 1.3 |
Total Light Transmittance 全光线透光率 |
~ | (%) | JIS K-7105 | 92 | 92 |
Haze 雾度 |
~ | (%) | JIS K-7105 | 0.8 | 0.8 |
Pencil Hardness 铅笔硬度 *1 |
~ | ~ | JIS K-5600 | HB | 1-2H |
Adhesive Property 粘着特性 *2 |
180º Peel Adhesion(Glass) |
N/25mm | JIS Z-0237 | 11 | 11 |
Tensile Strength 延伸强度 |
MD |
(Mpa) | JIS C-2318 | 220 | 220 |
TD | 265 | 265 | |||
Tensile elongation 伸延率 |
MD |
(%) | JIS C-2318 | 140 | 140 |
TD | 90 | 90 | |||
Heat shrinkage 热收缩率 |
MD |
(%) | JIS C-2318 | 0.9 | 0.9 |
TD | 0.3 | 0.3 |
Remarks:
*1 - The test data shown above is on HC layer only (No adhesive layer). 仅对HC层进行测定的数值。
*2 - The test data is measured after aging. 老化后测定的数值。
* - The table above shows typical test results and does not guarantee material value. 以上表格为试验实测值,而非材料保证值。
